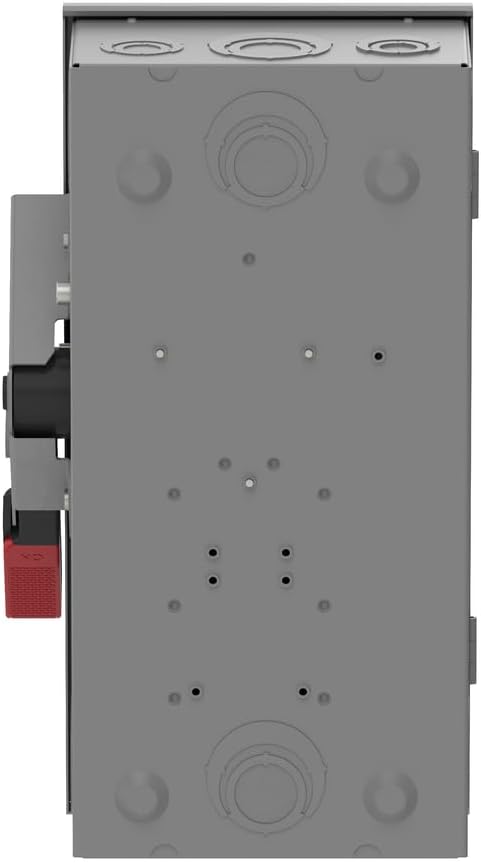

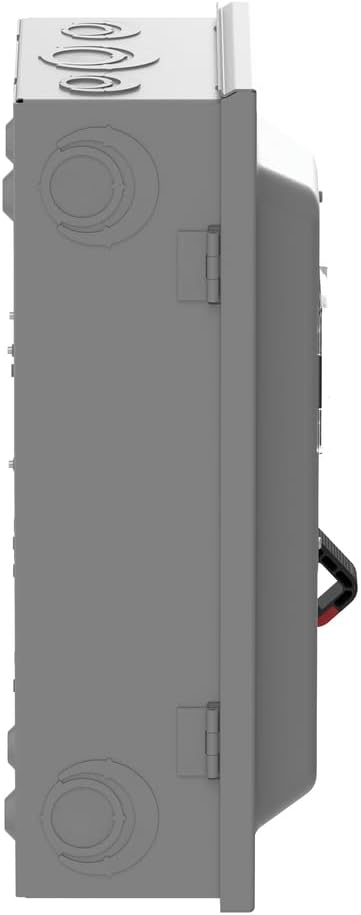

Square D by Schneider Electric VHU362 VisiPact Heavy Duty Safety Switch with Viewing Window and Red (On) and Black (Off) Indicators, Unfused 3 Pole, 60A, 600VAC/600VDC, Type 1

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect does not come with lugs that are grounded and must be done in the field using a grounding kit. The wire range for this switch is AWG 12-AWG 3 aluminium and AWG 14-AWG 3 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

• HEAVY DUTY SAFETY SWITCH: The VisiPact Safety Switch is a reliable, durable, and high-performance switch designed for the most grueling conditions; It has a durability three times greater than NEMA standard to meet your commercial and industrial needs
• SWITCH FEATURES: Viewing window allows visual confirmation with door closed; QR code provides quick access to product info; Dual cover interlock blocks opening cover if switch is on & switching on if cover is open; Handle indicates ON (red) or OFF (black)
• RATINGS: With a rating of 60A with a voltage 600 VAC and 600 VDC, this three-blade non-fusible heavy duty safety switch is ideal for a wide range of commercial and industrial applications
• FUSES & WIRING: Accepts H, K, R fuse types as shipped & can be field modified for J fuses; The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be field-installed; Wire range is AWG 12-AWG 3 aluminium and AWG 14-AWG 3 copper
• STANDARDS: All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828; This switch is Type 1 rated with a steel enclosure
